Frequency Domain Insulation System Diagnosis

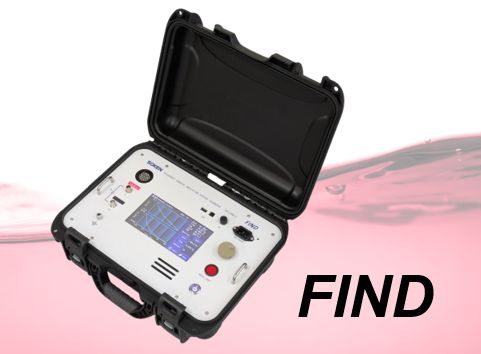

DAC-FIND-1

Making Insulation Testing Easier and Clearer

●　Evaluation of moisture absorption, degradation, and contamination of Power Transformers.
●　Insulation evaluation of High Voltage Rotating Machines.
●　Electrical Characteristics and degradation evaluation of Lubricants.
●　A new evaluation of the deterioration of enameled wire insulation coatings.



■Single measurement enables evaluation of insulation.
No need to compare past data to analyze insulation degradation factors.
■Compact・Light weight・Battery-powered.
Easy on-site measurement with a single unit.
■No specialized expertise is required.
The state of insulation is clearly analyzed.

Frequency Domain tanδ Test, 可変周波数によるtanδ(タンデルタ）測定/Capacitance Test, Simple Insulation Evaluation,簡易絶縁診断

Insulation testing is an important test for evaluating the insulation condition of equipment and conducting risk analysis. However, due to the variety of insulation materials and configurations, as well as differing evaluation standards, assessing the deterioration state is not easy. In many cases, specialized knowledge for analyzing multiple test results and comparison with historical data is required.


Have you ever experienced any of the following?　
-　Although measurement results were obtained, analysis was difficult and evaluation was not possible.
-　For the first insulation diagnosis test, evaluation is not possible due to lack of past data.


⇒Insulation diagnosis by frequency domain
- Degradation factors can be clearly analyzed from measurement results.
- Evaluation is possible with a single measurement. No need for past data.

Insulation diagnosis of High Voltage Rotating Machines

Diagnosis High Voltage transformers

Evaluation of Dielectric/Insulating properties of Lubricants
